Throat Diameter 70mm / 150mm Angle Iron Manual Drill With Weight 6.5kg

Name: Throat Diameter 70mm 150mm Angle Iron Manual Drill With Weight 65kg
Brand: Boyu
Price: 1 USD

Place of Origin : China

Brand Name : Boyu

Certification : ISO9001

Model Number : TYSJZ

MOQ : 10 sets

Price : Negotiable

Packaging Details : Container

Delivery Time : 25~30days

Payment Terms : TT/TC

Supply Ability : 100 sets/month

Price terms : FOB(Shanghai) or CIF (assigned port)

OEM : available

Throat diameter : 70mm,150mm

Weight : 6.5, 8kg

After sales service : available

Gap size(mm) : 80*70*30; 64*150*30

Overhead dimension : 276*155*425mm

Contact Now

Throat Diameter 70mm / 150mm Angle Iron Manual Drill With Weight 6.5kg

Quick details:

1. Transmission Line Stringing Equipment Accessories & Tools
2. Angle iron manual drill
3. Throat diameter: 70mm,150mm
4. Gap size(mm): 80*70*30; 64*150*30

5. Weight: 6.5, 8kg

6. Boyu Brand

Description:

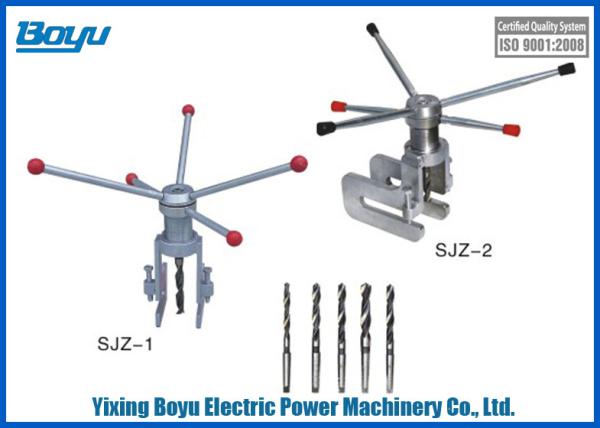

Our angle iron manual drill is applicable to the overhead operation of drilling perforations while the tower is erected. It is matched drill bit requires to be bought additionally.

Specification:

Model

Gap size

(mm)

Throat diameter

(mm)

Overhead dimension

(mm)

Weight

(kg)

SJZ-1

80*70*30

276*155*425

6.5

SJZ-2

64*150*30

150

273*235*424

The diameter of supporting drill bit is Φ13.5/Φ15.5/Φ17.5/Φ19.5/ Φ21.5

Maufacturer Introduction

Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are at the east of China, near Shanghai, Nanjin, Hangzhou City, about 3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

Line Stringing Equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system.

We produce 40~60sets of stringing equipment each month and all kinds of accessories
