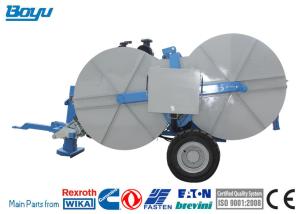

TY2x50 Tension Stringing Equipment Max Intermittent Tension 2x55/1x110kN 77kw 103hp

Name: TY2x50 Tension Stringing Equipment Max Intermittent Tension 2x551x110kN 77kw 103hp
Brand: Boyu
Price: 1 USD

China TY2x50 Tension Stringing Equipment Max Intermittent Tension 2x55/1x110kN 77kw 103hp factory

Brand Name : Boyu

Model Number : TY2x50-20

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Max intermittent tension : 2x55/1x110kN

Max continuous tension : 2x50/1x100kN

Speed at max tension : 2.5km/h

Max speed : 5km/h

Tension at max speed : 2x25/1x50kN

Max reverse pulling force : 2x45/1x90kN

Max reverse pulling speed : 5km/h

Diesel : 77kw(103hp)

Bull-wheel diameter : 1300/1500mm

Type : Stringing Equipment Hydraulic Tensioner

Contact Now

TY2x50 Max Intermittent Tension 2x55/1x110kN 77kw(103hp) Hydraulic Tensioner Cummins Engine

Model	TY2x50
Max intermittent tension	2x55/1x110kN
Max continuous tension	2x50/1x100kN
Diesel	77kw(103hp)
Engine	Cummins

Performance

Max intermittent tension: 2x55/1x110kN
Max continuous tension: 2x50/1x100kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Tension at max speed: 2x25/1x50kN
Max reverse pulling force: 2x45/1x90kN
Max reverse pulling speed: 5km/h

Engine

Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V

Characteristics

Bull-wheel diameter: 1300/1500mm
Max conductor diameter: 40mm
Groove number: 2x5
Total weight: 6000kg
Overall dimension: 4700x2300x2700mm

Main configuration

Engine Cummins
Hydraulic pump German Rexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexroth
Hydraulic meter German
Operating handle German Rexroth

TY2x50 Tension Stringing Equipment Max Intermittent Tension 2x55/1x110kN 77kw 103hp

Model	Bull-wheel diameter	Max conductor diameter	Groove number	Total weight	Overall damension
Model	mm	mm		kg	mm
TY2X35	1300	40	2x5	4500	430022502700
TY2X40	1300/1500	40	2x5	6230	430022502700
TY2X50	1300/1500	40	2x5	6000	470023002700
TY2X70	1700	40	2x6	7500	470023002700
TY2x70IV	1500	40	2x8	10000	550022802700
TY2X90	1900	50	2x6	7500	540023002700
TY4x50	1500	40	4x5	13000	590023002700

Model	Max intermittent tension	Max continuous tension	Speed at max tension	Tension at max speed	Max reverse pulling force	Max reverse pulling speed	Diesel	Cooling system	Electrical system
Model	kN	kN	km/h	kN	kN	km/h	kw(hp)		V
TY2X35	2x40/ 1x80	2x35/ 1x70	2.5	2x20/ 1x40	2x30/ 1x60	5	77(103)	Water	24
TY2X40	2x45/ 1x90	2x40/ 1x80	2.5	2x20/ 1x40	2x35/ 1x70	5	77(103)	Water	24
TY2X50	2x55/ 1x110	2x50/ 1x100	2.5	2x25/ 1x50	2x45/ 1x90	5	77(103)	Water	24
TY2X70	2x70/ 1x140	2x65/ 1x130	2.5	2x25/ 1x50	2x60/ 1x120	5	77(103)	Water	24
TY2x70IV	2x70/ 1x140	2x65/ 1x130	2.5	2x25/ 1x50	2x60/ 1x120	5	77(103)	Water	24
TY2X90	2x100/ 1x200	2x90/ 1x180	2.5	2x40/ 1x80	2x80/ 1x160	2	130kw (2500r/min)	Water	24
TY4x50	4x50/ 2x200	4x40/ 2x80	2.5	4x20/ 2x40	4x40/ 2x80	1.25	77(103)	Water	24
