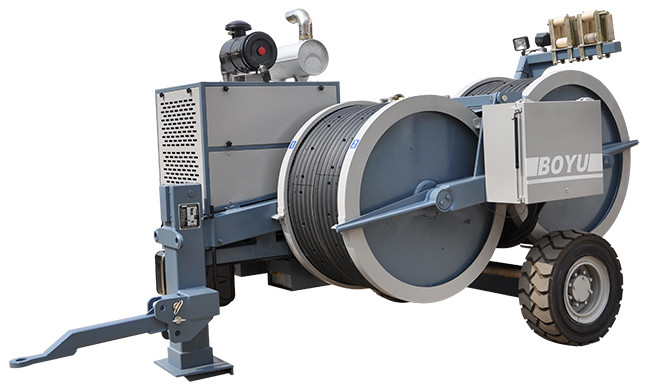

Overhead Line Stringing Equipment Cummins Max Continuous Pull 2x50kN Hydraulic Tensioner

TY2x50 Overhead Line Stringing Equipment Max Continuous Pull 2x50kN Hydraulic Tensioner

TY2x50 Stringing Equipment Hydraulic Tensioner

Performance

• Max intermittent pull: 2x55kN
• Max continuous pull: 2x50kN
• Speed at max pull: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 2x25kN
• Max reverse pulling force: 2*45kN
• Max reverse pulling speed: 5km/h

Characteristics

• Bull-wheel diameter: 1300/1500mm
• Max conductor diameter: 40mm
• Groove number: 2x5
• Total weight: 6000kg
• Overall dimension (length*width*height): 4700*2300*2700mm

Configuration

• 2 hydraulic dynamometers
• Hydraulic oil cooling system
• 2 digital meter counters
• 2 digital speed meters
• Control instruments for hydraulic system and diesel engine
• Hydraulic front stabilizer
• Grounding connection point
• Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor.

Company Profile

• Yixing Boyu Electric Power Machinery Co., Ltd was established in 1994, a high-tech enterprise in China, More than 27years experience.
• We are manufacturing and sales of kinds of transmission line construction machines and tools such as hydraulic puller, tensioner, conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer.
• After years efforts, Boyu has developed as one of the largest stringing equipment and tools manufacturer in China which has more than 200 varieties kinds of goods now.
• Our products have been used in 500KV/330KV/220KV/110KV and below voltages transmission line stringing project, providing perfect products and after sales services for safe operation of electrical network.
• This year, our R&D team is preparing for ultra-high voltage project 2015 in China.
• Our company developed many types of product to content requirement of customers, and Product won the customers high praise.
• Our company works for the development of electric power industry and strives for the transmission line construction machinery to catch up with the international level.
• Yixing Boyu Electric Power Machinery Co., Ltd is willing to create a friendly cooperation relationship with customers to seek development and create prosperity.

2x50kN Hydraulic Tensioner

Cummins Hydraulic Tensioner

Hydraulic Cummins Tensioner

Overhead Line Stringing Equipment Cummins Max Continuous Pull 2x50kN Hydraulic Tensioner Images
