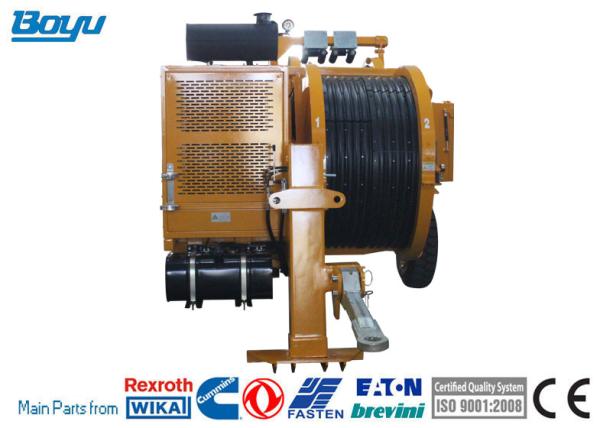

Max Intermittent Pull 2x40kN Hydraulic Tension For Overhead Line Stringing Machine
| Performance | - Max intermittent pull: 2x40kN
- Max continuous pull: 2x35kN
- Speed at max pull: 2.5km/h
- Max speed: 5km/h
- Pull at max speed: 2x20kN
- Max reverse pulling force: 2x30kN
- Max reverse pulling speed: 5km/h
|
| Characteristics | - Bull-wheel diameter: 1300mm
- Max conductor diameter: 40mm
- Groove number: 2x5
- Total weight: 4500kg
- Overall dimension (length*width*height): 4300*2250*2700mm
|
| Main configuration | - Engine: Cummins
- Hydraulic pump: German Rexroth/Dnish Danfoss
- Main motor: German Rexroth/French Leduc
- Speed reducer: German Rexroth / Italy Brevini
- Hydraulic meter: German
- Operating handle: German Rexroth
|
| Engine | - Diesel: 77kw(103hp)
- Cooling system: water
- Electrical system: 24V
|
| Hydraulic Transmission | - The machine can realize step less speed.
- The machine is provided with tension presetting system.
|
| Configuration | - Hydraulic dynamometers
- Hydraulic oil cooling system
- Digital speed and meter counter
- Grounding connection point
- Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
|
| Additional Devices | - Lighting system for the trailer
- Air brake system for the trailer (extra charge)
- 2 hydraulic conductor clamps for drum change operations (extra charge)
- Swivel guide rope roller
|
After-sales Service Warranty
- We have a one-year quality guarantee. If the internal components fail within one year, we will replace another one free of charge.
- We will provide some easily damaged equipment parts to ensure normal operation.
- In case of design, manufacturing, function or program quality problems occurring during the warranty period, Boyu shall assume full responsibility and all economic losses caused therefrom.
- In case of any other quality problems within the warranty period, Boyu will provide online video service after receiving the buyer's notice within 24 hours.
- In case of any major quality problems within the warranty period, Boyu will also provide online video service within 48 hours after receiving the buyer's notice.
- Boyu will offer the buyer a lifetime preferential price, including materials and spare parts for system operation, equipment maintenance, and a guarantee of 7 days by door express.
- Operation and maintenance training: We provide free operation and maintenance training at the factory and cover all accommodation costs in China. We provide 3 to 5 days of engineering support to your work site for operation and maintenance training, but you must pay for accommodation, transportation and round-trip airfare.
History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
