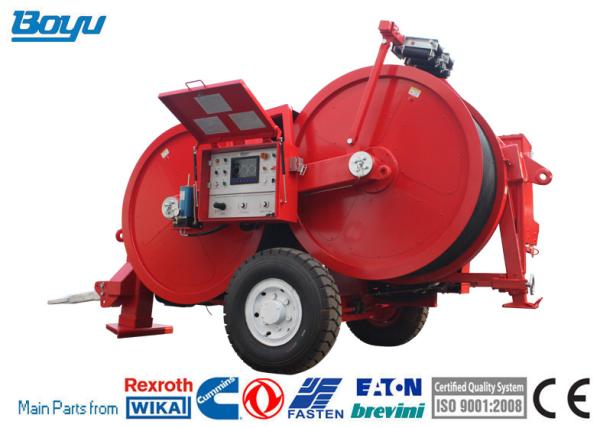

Overhead Line Stringing Equipment TY90TP Hydraulic Puller-Tensioner For Transmission Line
Performance
| Puller |
| Max pull | 90kN |
| Speed at max pull | 2.4km/h |
| Max speed | 5km/h |
| Pull at max speed | 44kN |
| Tensioner |
| Max tension | 90kN |
| Max speed | 5km/h |
Characteristics
| Bull-wheel diameter | 1500mm |
| Max rope diameter | 18mm |
| Groove number | 10 |
| Max conductor diameter | 40mm |
| Total weight | 4600kg |
| Overall dimension (length*width*height) | 4700*2300*2700mm |
Engine
| Diesel | 118kw(158hp) |
| Cooling system | water |
| Electrical system | 24V |
Main configuration
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
